TATAMI-ORI / WIRE MESH PLAIN DUTCH WEAVE

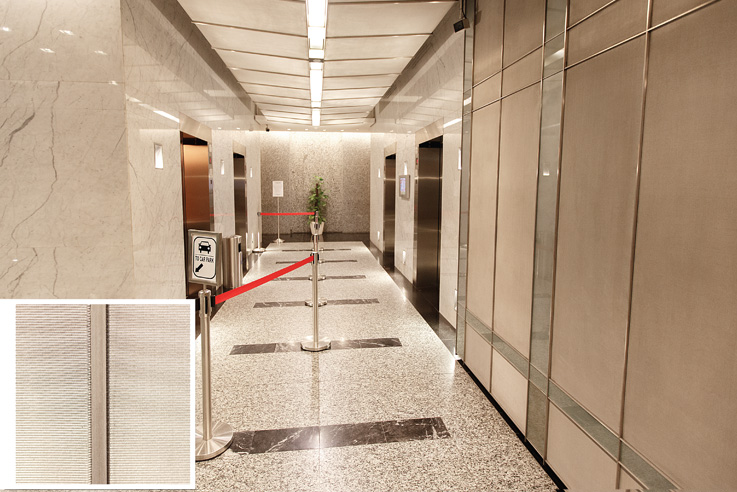

Note: A lift lobby at Abacus Plaza, Tampines where wire mesh not supplied by us but similar to our Tatami-Ori was used.
Material
Vertical Wire Diameter
Horizontal Wire Diameter
Vertical Wire Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire Diameter
Horizontal Wire Diameter
Vertical Wire Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
0.36mm
0.25mm
1.06mm (24 mesh)
0.23mm (110 mesh)
0% (zero%)
1,000mm, 1,220mm, 1,320mm & 1,524mm (max 1,600mm)
2.6kgs / m2
0.73mm
0.36mm
0.25mm
1.06mm (24 mesh)
0.23mm (110 mesh)
0% (zero%)
1,000mm, 1,220mm, 1,320mm & 1,524mm (max 1,600mm)
2.6kgs / m2
0.73mm
Remarks
a) Opening ratio & thickness are all nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening ratio & thickness are all nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
