Architectural Mesh
Industrial Wire Mesh Products

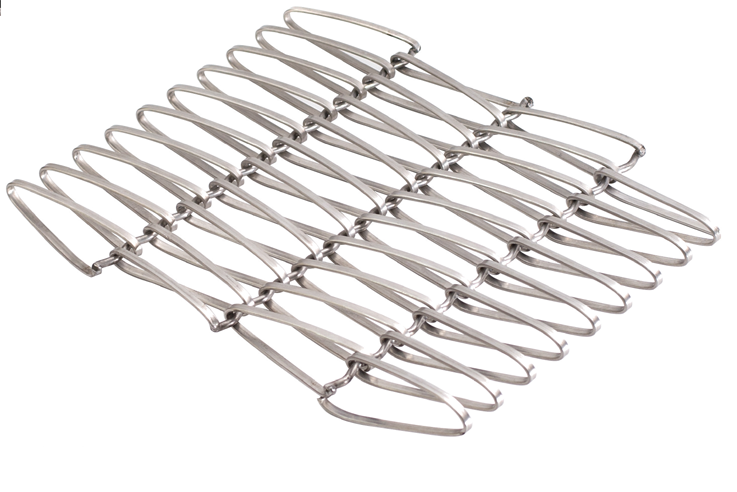

KODAMA / KF2TYPE
Material
Spiral Wire Diameter*
Horizontal Wire Diameter**
Spiral Wire Pitch
Horizontal Wire Pitch
Standard Width
Weight
Thickness
Spiral Wire Diameter*
Horizontal Wire Diameter**
Spiral Wire Pitch
Horizontal Wire Pitch
Standard Width
Weight
Thickness
Stainless Steel, GradeSUS304
6.2mm(width) by 2.5mm(thickness)
5.0 mm
30.0 mm
97.0 mm
800mm, 1,000mm, 1,200mm, 1,600 (max 1,000mm)
9.9 kgs/m2
22.0 mm
* flat wireprofile
** round wireprofile
6.2mm(width) by 2.5mm(thickness)
5.0 mm
30.0 mm
97.0 mm
800mm, 1,000mm, 1,200mm, 1,600 (max 1,000mm)
9.9 kgs/m2
22.0 mm
* flat wireprofile
** round wireprofile
Remarks
a) The above specification is based on KF2-30.0-97.0-5.0-(6.2 x2.5)
b) The mesh can be folded and make curvy form in length direction
c) There is no limit in the length but advisable to keep maximum length at 5M due to weight concern
a) The above specification is based on KF2-30.0-97.0-5.0-(6.2 x2.5)
b) The mesh can be folded and make curvy form in length direction
c) There is no limit in the length but advisable to keep maximum length at 5M due to weight concern
