NAMIKI 並木 / SUDARE MESH

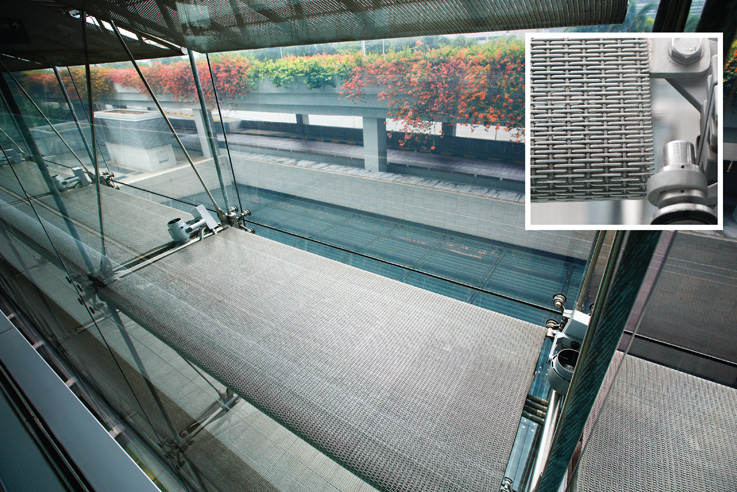

Note: Catwalk, Changi Airport Terminal 2 where screen not supplied by us but similar to our NAMIKI was used.
Material
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
2.0mm
1.5mm (wire in pre-crimped flat top form)
1pc wire rope in every 17.5mm
3.5mm (7.25 mesh)
50.6%
900mm, 1,200mm, 1,500mm (max 4,000mm)
5.2kgs / m2
4.5mm
2.0mm
1.5mm (wire in pre-crimped flat top form)
1pc wire rope in every 17.5mm
3.5mm (7.25 mesh)
50.6%
900mm, 1,200mm, 1,500mm (max 4,000mm)
5.2kgs / m2
4.5mm
Remarks
a) Opening ratio is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening ratio is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
