GENJI 源 氏 / SUDARE MESH

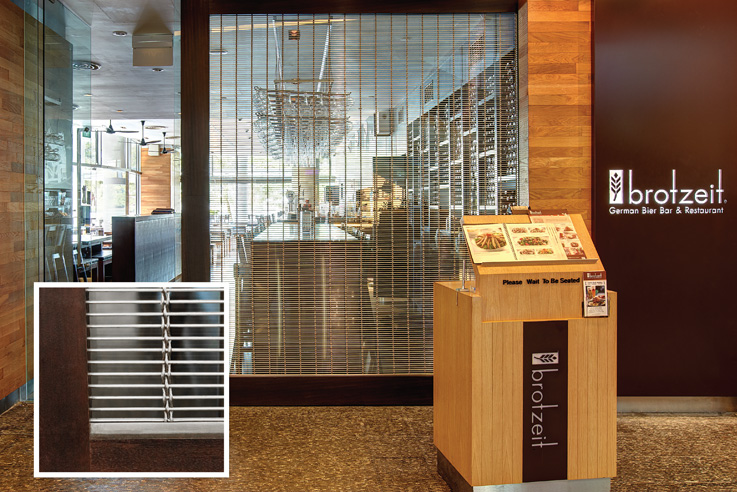

Note: A German Bier Bar & Restaurant, Vivocity where screen not supplied by us but similar to our Genji was used.
Material
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
2.75mm
4.0mm
3pcs wire rope in every 125mm
14.5mm (1.75 mesh)
64%
900mm, 1,200mm, 1,500mm (max 4,000mm)
8.26kgs / m2
10.0mm
2.75mm
4.0mm
3pcs wire rope in every 125mm
14.5mm (1.75 mesh)
64%
900mm, 1,200mm, 1,500mm (max 4,000mm)
8.26kgs / m2
10.0mm
Remarks
a) Opening ratio is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening ratio is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
