FUJIKOUSHI 富士格子 / KOUSHI MESH
Material
Vertical Wire* Diameter
Horizontal Wire* Diameter
Veritcal Wire Pitch
Horizontal Wire Pitch
Standard Width
Weight
Thickness
Vertical Wire* Diameter
Horizontal Wire* Diameter
Veritcal Wire Pitch
Horizontal Wire Pitch
Standard Width
Weight
Thickness
Aluminium, GradeA6063 S
6.0 mm (width) by 2.0 mm (thickness)
6.0 mm (width) by 2.0 mm (thickness)
40.0 mm
40.0 mm
800 mm, 1,200 mm,(max 1,500 mm)
3.24 kg/m2
3.9 mm
*flat wire profile
6.0 mm (width) by 2.0 mm (thickness)
6.0 mm (width) by 2.0 mm (thickness)
40.0 mm
40.0 mm
800 mm, 1,200 mm,(max 1,500 mm)
3.24 kg/m2
3.9 mm
*flat wire profile
Remarks

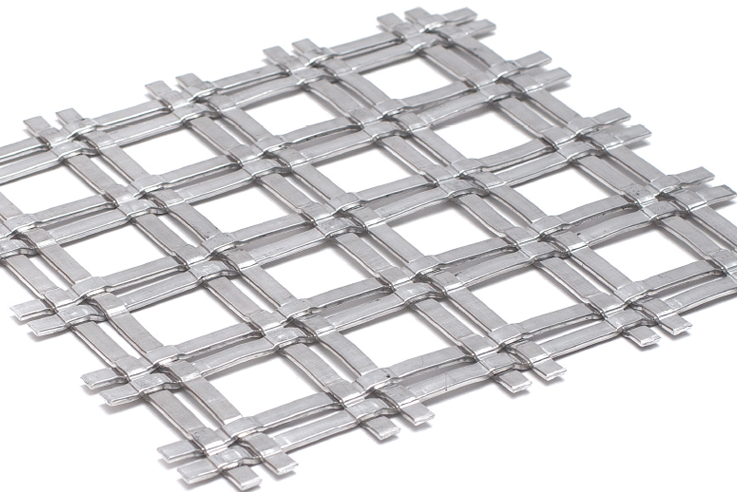

a) The above photo and specification is based on double type design
b) The above specification is based on AL0640
c) Single type design is also available
d) Maximum width & length up to 1.5M x 1.5M (i.e 2.25SQM)
e) Powder coating () available upon request
a) The above photo and specification is based on double type design
b) The above specification is based on AL0640
c) Single type design is also available
d) Maximum width & length up to 1.5M x 1.5M (i.e 2.25SQM)
e) Powder coating () available upon request
